제품 상세 정보:
|
| 일탈: | 15mm/m 이하 | 오븐 길이: | 4.0m |
|---|---|---|---|
| 오븐 가열: | 원적외법 | 오븐 온도 제어: | ±2°C |
| 격리: | 100mm | 그리기 비율: | 그리기 비율 |
| 홀오프 정확도: | ±1m/분 | 애플리케이션: | 완전 자동 스트래핑 |
| 캠버: | 매우 낮습니다 | 전파방해 위험: | 없음 |
| 강조하다: | Low Camber PP Strap Production Line,PP Strap Making Line with Low Camber,Low Camber Polypropylene Strap Manufacturing Line |
||

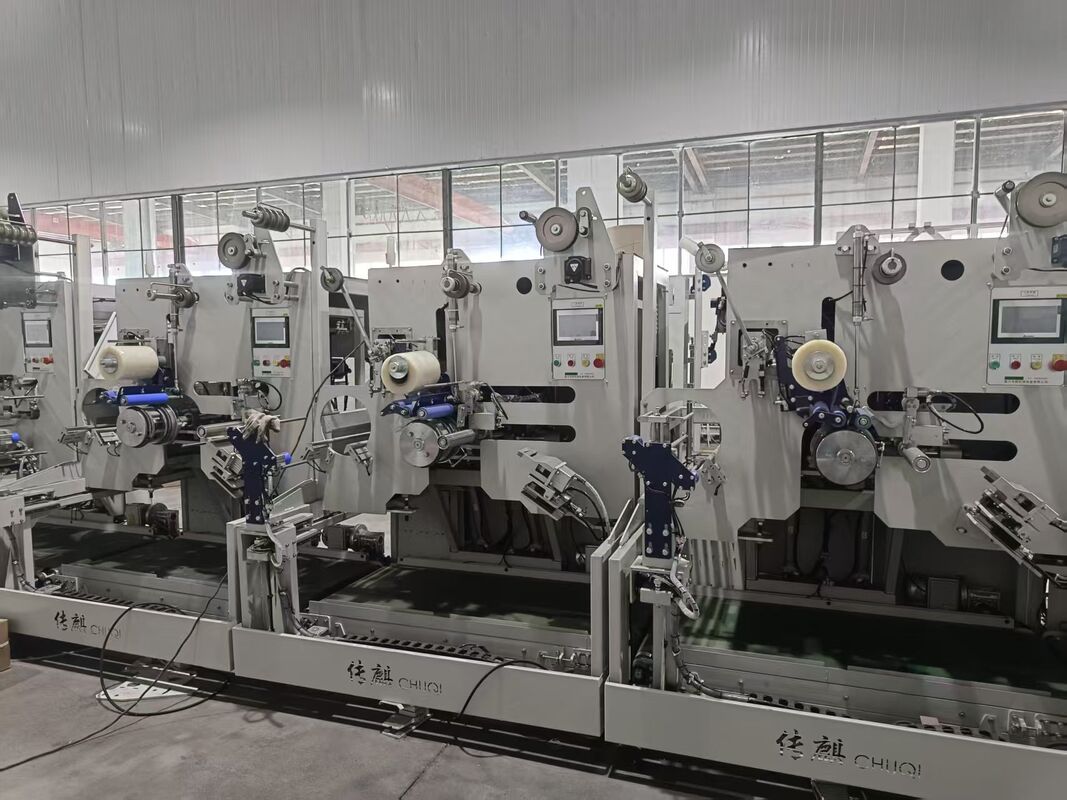

This production line manufactures PP strapping with extremely low camber, maintaining deviation within 15mm/m. Advanced multi-stage stretching, precision heat setting, and comprehensive closed-loop tension control ensure superior product quality. The system features a 4.0-meter sizing oven with far-infrared heating tubes, 100mm thick insulation, and ±2°C temperature control accuracy for complete stress elimination and thorough material setting.
| Parameter | Specification |
|---|---|
| Product Deviation | ≤ 15 mm/m |
| Sizing Oven Length | 4.0 m |
| Oven Heating Method | Far-infrared heating tubes |
| Oven Temperature Accuracy | ±2°C |
| Insulation Thickness | 100 mm |
| Draw Ratio Range | 1.5 - 12 : 1 |
| Haul-off Speed Accuracy | ±1 m/min |
| Line Speed | 0 - 200 m/min |
