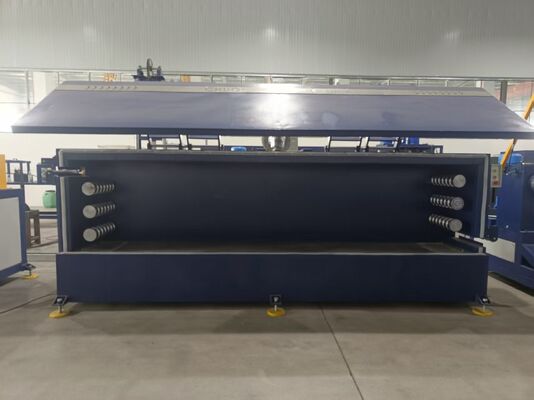

2-Stage Water Removal PP Band Extrusion Line

2-Stage Water Removal PP Band Extrusion Line
2-Stage Water Removal PP Band Extrusion Line

큰 이미지 :  2-Stage Water Removal PP Band Extrusion Line

제품 상세 정보:
원래 장소: 중국
브랜드 이름: CHUQI
모델 번호: CQ-SPP120-6
결제 및 배송 조건:
최소 주문 수량: 1세트
가격: USD/RMB
포장 세부 사항: 나무 상자
배달 시간: 60일
지불 조건: 티/티
공급 능력: 10세트
접촉

2-Stage Water Removal PP Band Extrusion Line

설명
수분 제거 단계: 2 1단계 전력: 4kw
2단계 전력: 7.5kw 첫 번째 단계 유닛: 4개의 흡입 세트
두 번째 단계 유닛: 4개의 물 제거 장치 작동 원리: 고압 공기 흐름
유지 관리성: 조정 가능한 각도/흐름 속도 호환성: 고속 준비
강조하다:

2-stage PP band extrusion line

,

water removal PP strapping production line

,

PP strapping band extrusion machine

2-Stage Water Removal PP Band Extrusion Line
Residual moisture on the tape surface, if carried into subsequent embossing or winding processes, can cause unclear embossing, roll adhesion, or mildew. This production line features a two-stage water removal system. The first water removal device, located after the first cooling tank, uses 4 suction pipe sets and a 4KW high-pressure centrifugal fan to initially remove bulk water. The second water removal device at the outlet of the secondary cooling tank has 4 water removal units and a 7.5KW high-pressure centrifugal fan for efficient fine drying. The two stages work together to ensure the tape entering the embosser and winder is completely dry, providing ideal conditions for downstream processes.
Technical Specifications
Parameter First Water Removal Second Water Removal
Number of units 4 suction pipe sets 4 water removal units
Fan power 4 KW 7.5 KW
Fan type High-pressure centrifugal High-pressure centrifugal
Installation position After first cooling tank Outlet of secondary cooling tank
Target 6 PP strands 6 PP strands
Key Features
  • Two-stage removal: First rough removal, second fine drying - thorough
  • First stage 4KW: High-volume suction, quickly removes bulk water
  • Second stage 7.5KW: High-pressure strong blow,徹底 removes residual film
  • 4 independent units: Each对应 one strand, no interference
  • Efficient drying: Visually dry surface with no water droplets
  • Improved embossing: Dry surface ensures clear, consistent patterns
  • Better winding: Prevents moisture-related adhesion and mildew
  • High-speed compatible: Effective even at high line speeds
  • Energy-saving: Fans operate intermittently or speed-adjusted
  • Easy maintenance: Adjustable air knife angle and flow
Frequently Asked Questions
Why are two stages of water removal needed? Isn't one enough?
After the first tank, a large amount of water adheres to the tape surface; one stage can remove about 80%. However, the remaining water film still needs strong blowing. The second stage uses a more powerful fan to ensure complete dryness, especially adapting to reduced water splash at high speeds.
Will the airflow from the water removal units blow the tape off course?
The design uses a fan-shaped airflow with adjustable angle, directed tangentially to the tape surface, primarily generating shear force to peel off the water film, with minimal impact on the tape's running path. Proper adjustment prevents wandering.
Are the fans noisy?
High-pressure centrifugal fans do generate some noise, but the equipment includes noise reduction measures and protective covers. For noise-sensitive environments, optional additional sound enclosures or remote fan installation can be provided.

태그:

동기식 PP 스트래핑 라인,

PP 달아서 생산 라인,

고생산성 PP 스트래핑 기계
