제품 상세 정보:
|
| 수량: | 6 독립 | 속도: | 300개 Ｍ / 분 |
|---|---|---|---|
| 운전하다: | 1.5kW 서보 | 횡단: | 0.4kW 서보 |
| 종이 코어: | 203mm 맞춤형 가능 | 언로딩: | 자동 드롭다운 |
| 권선 품질: | 깔끔하고 타이트해요 |

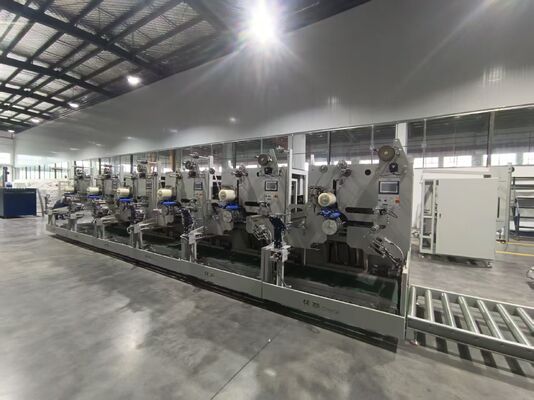

Winding is the final process in PP strapping production, directly determining the appearance quality of finished rolls and customer satisfaction. This production line is equipped with 6 independent fully automatic drop-down winding machines, each corresponding to one strapping strand.
Each winder is driven by an independent servo motor (1.5KW) and a servo traversing system (0.4KW), with a winding speed of up to 300 m/min. Independent control allows separate setting of winding tension and speed for each strand, perfectly accommodating minor variations that may occur in multi-channel production.
The drop-down unloading design allows finished rolls to automatically drop off, making operation convenient and efficient. The servo-driven traversing system ensures uniform, tight arrangement of the tape on the paper core, resulting in neat rolls with flat end faces, without loose or overlapping layers.
| Item | Parameter |
|---|---|
| Number of winders | 6 units (independent) |
| Winding speed range | 0 - 300 m/min |
| Paper core inner diameter | φ203 mm |
| Paper core length | 175 - 195 mm (customizable) |
| Motor power per shaft | 1.5 KW (servo) |
| Traversing motor power | 0.4 KW (servo) |
| Belt motor power | 0.4 KW |
| Unloading method | Automatic drop-down |
